Roof Replacement
27/12/2023

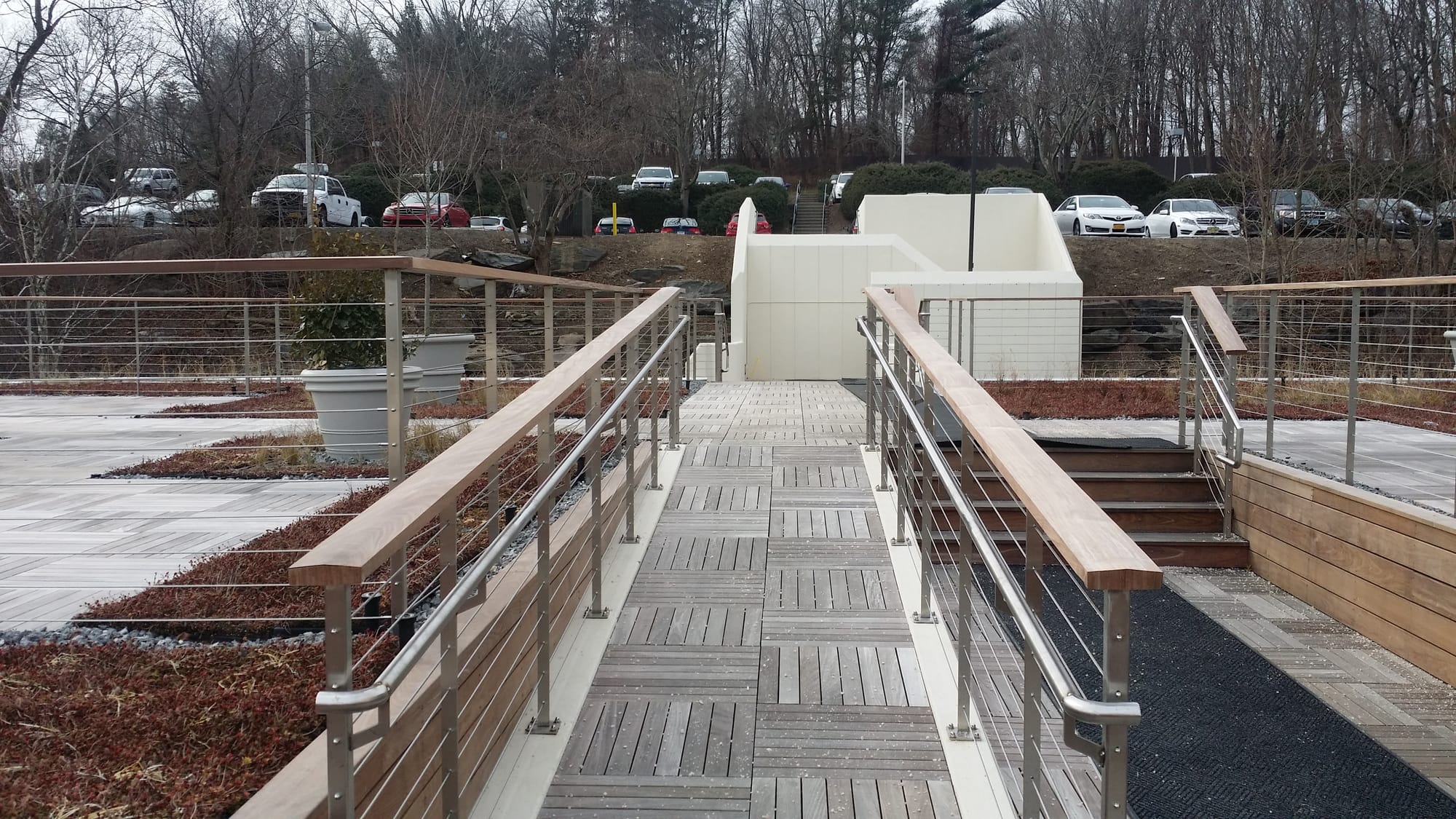

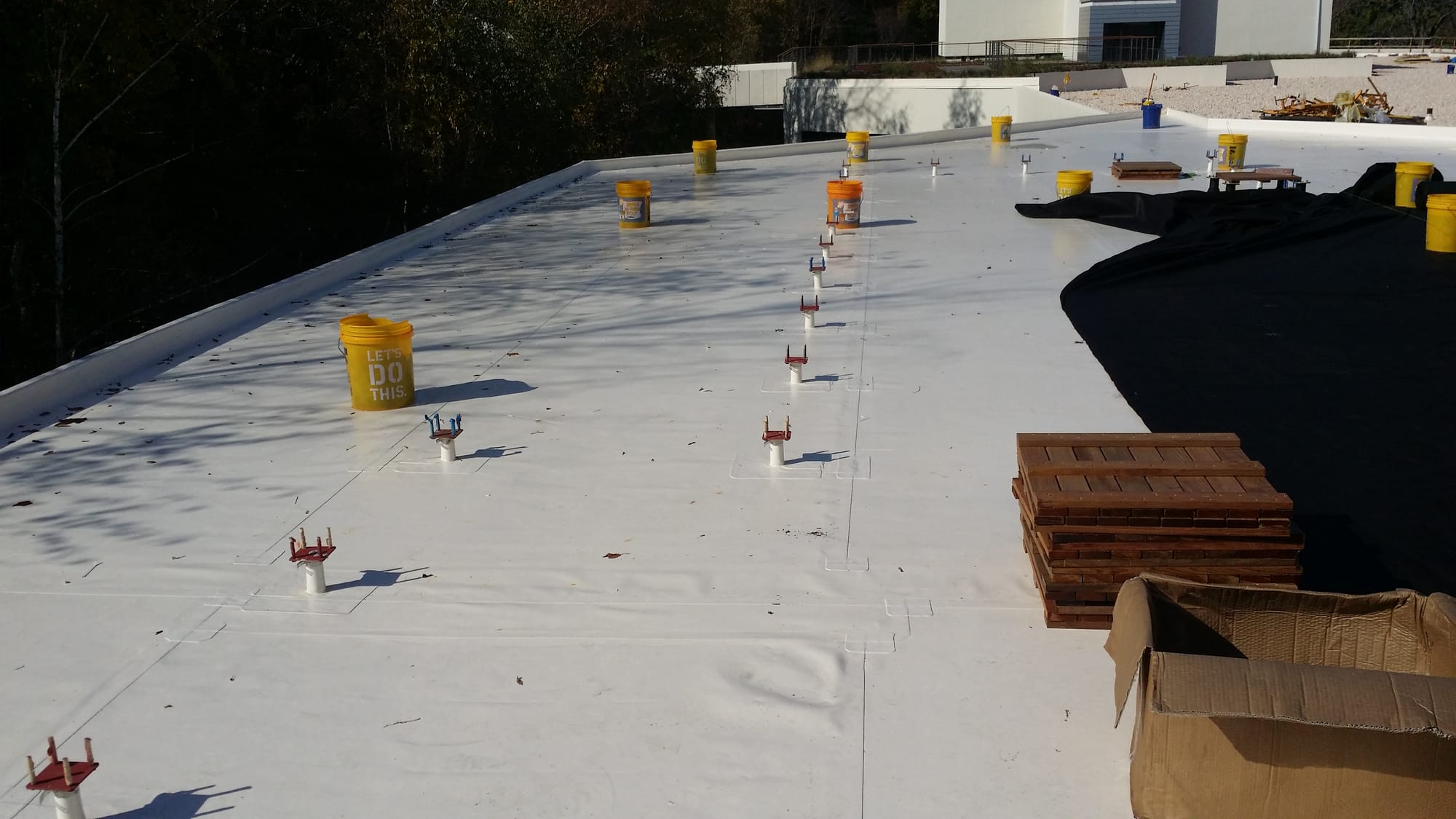

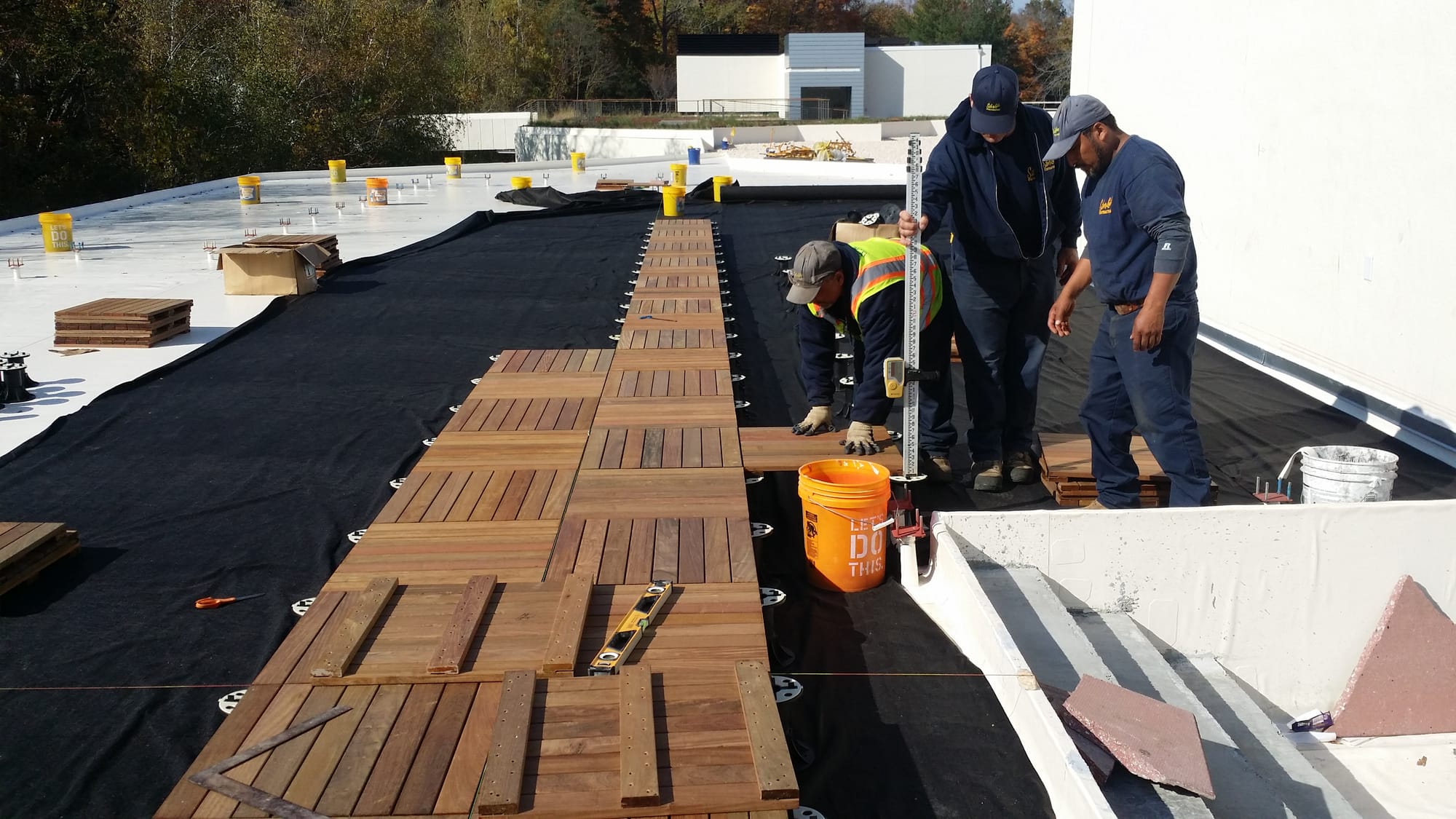

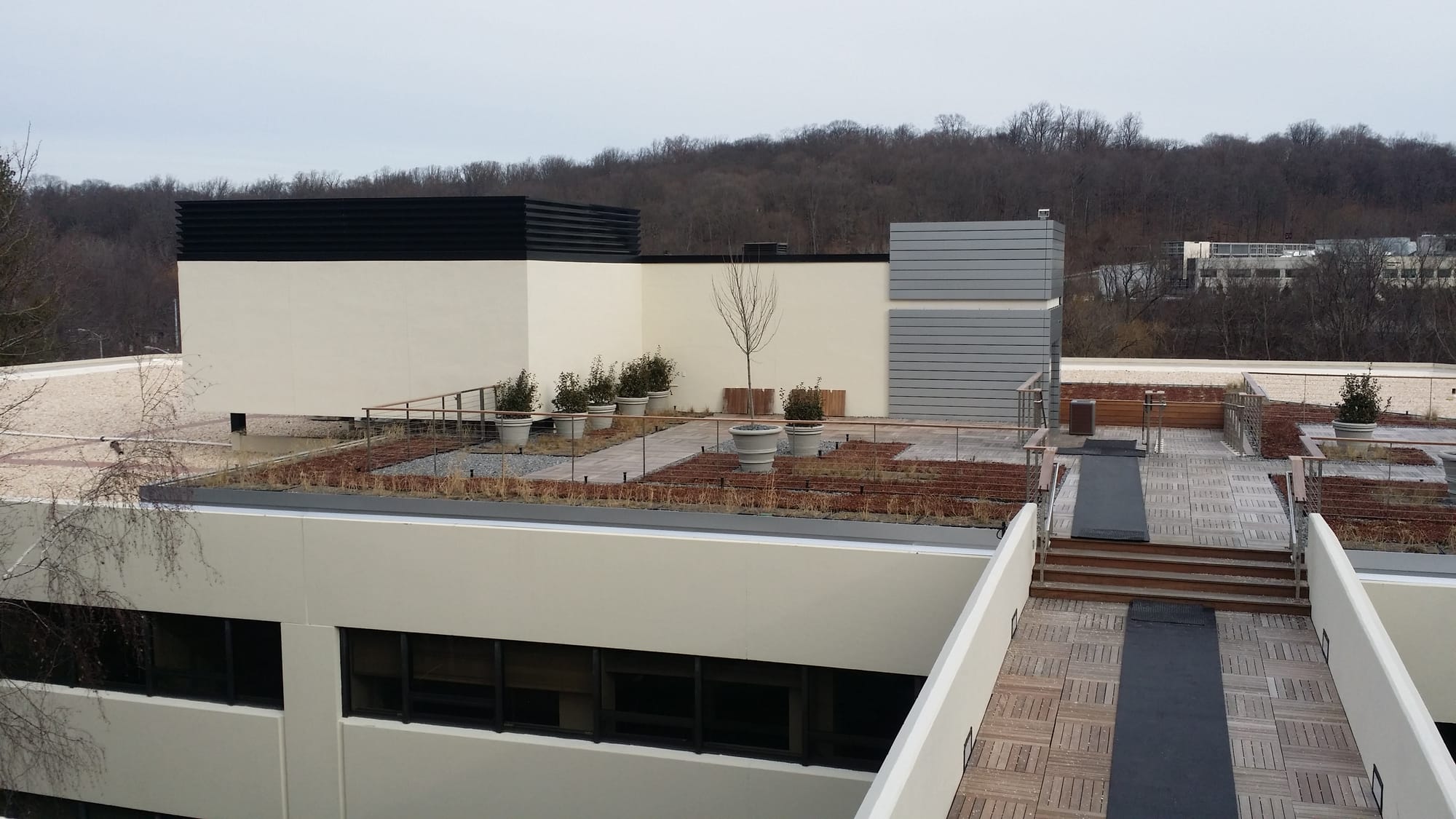

Green Roof System KEE Thermoplastic single ply membrane system.

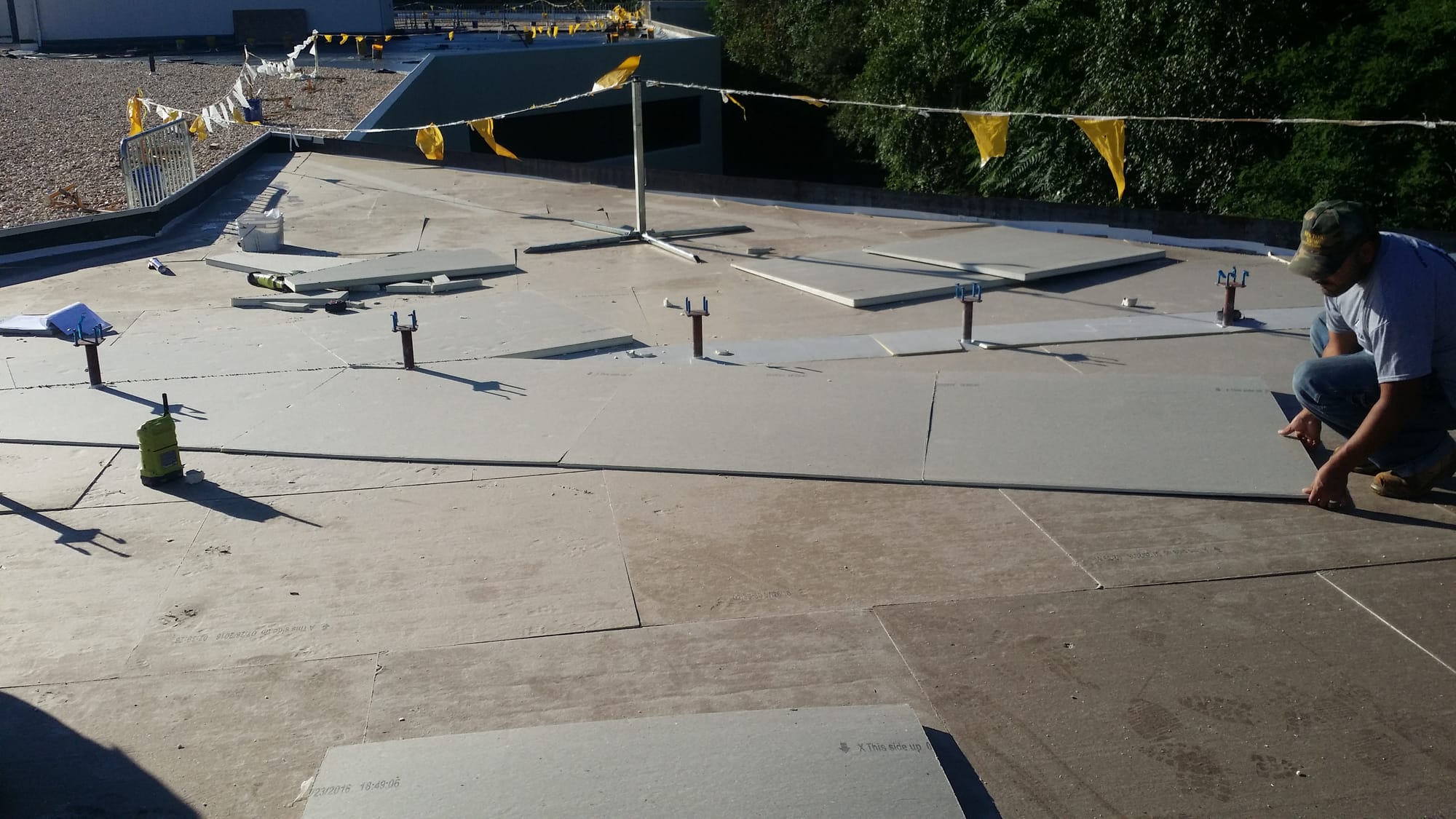

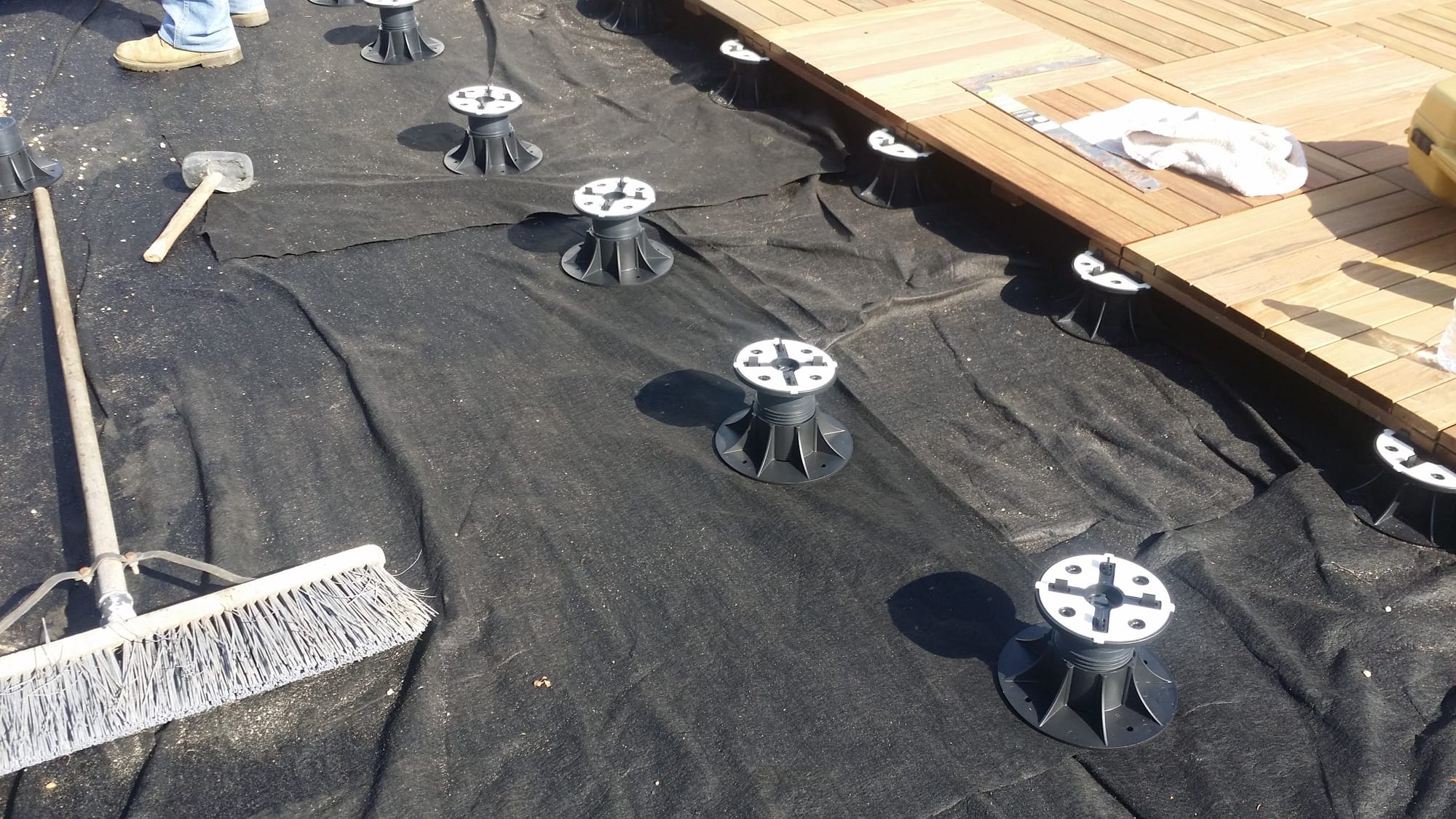

Vapor retarder installed over the concrete substrate. Tapered polyisocyanurate board insulation. 60 mil XT FiberTite KEE membrane system. Adjustable Bison paver pedestals, Epi wood pavers and green tray planter system.

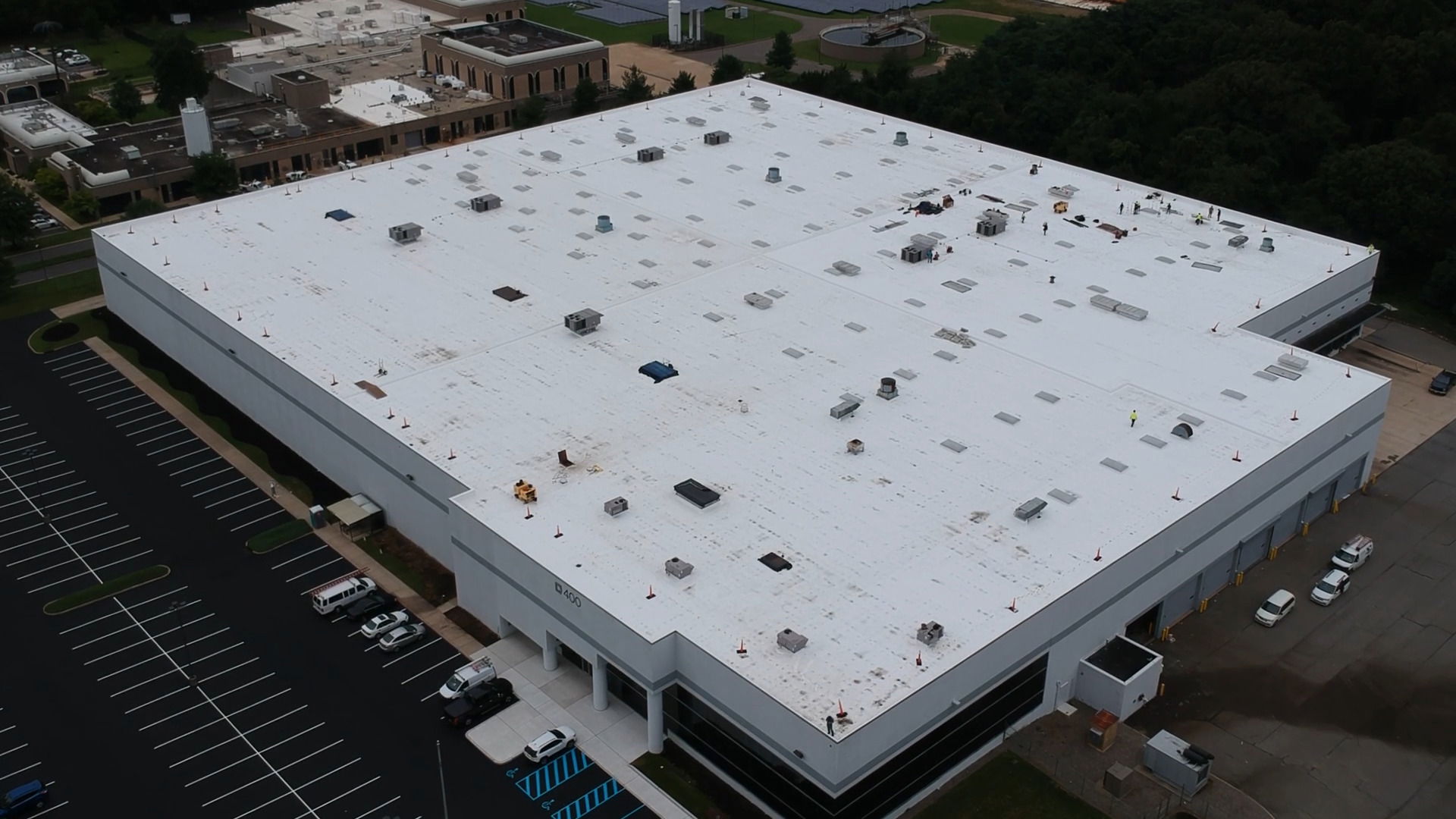

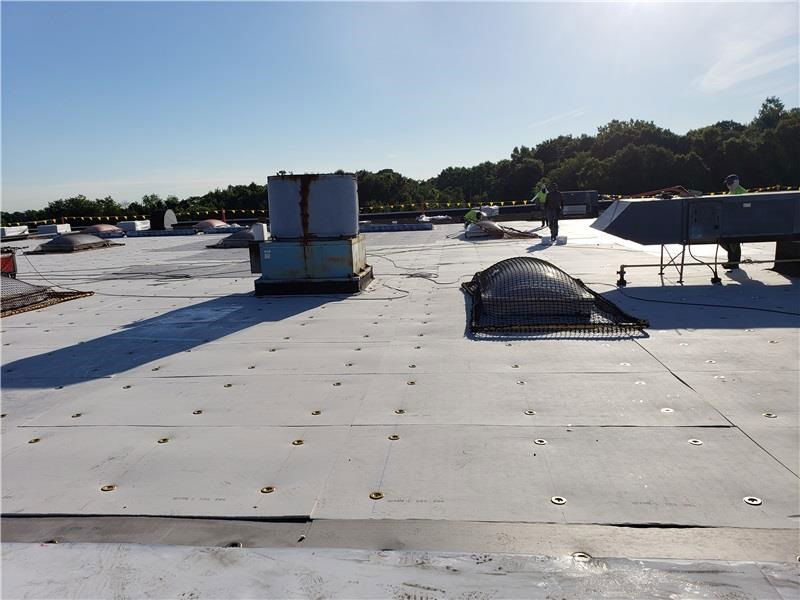

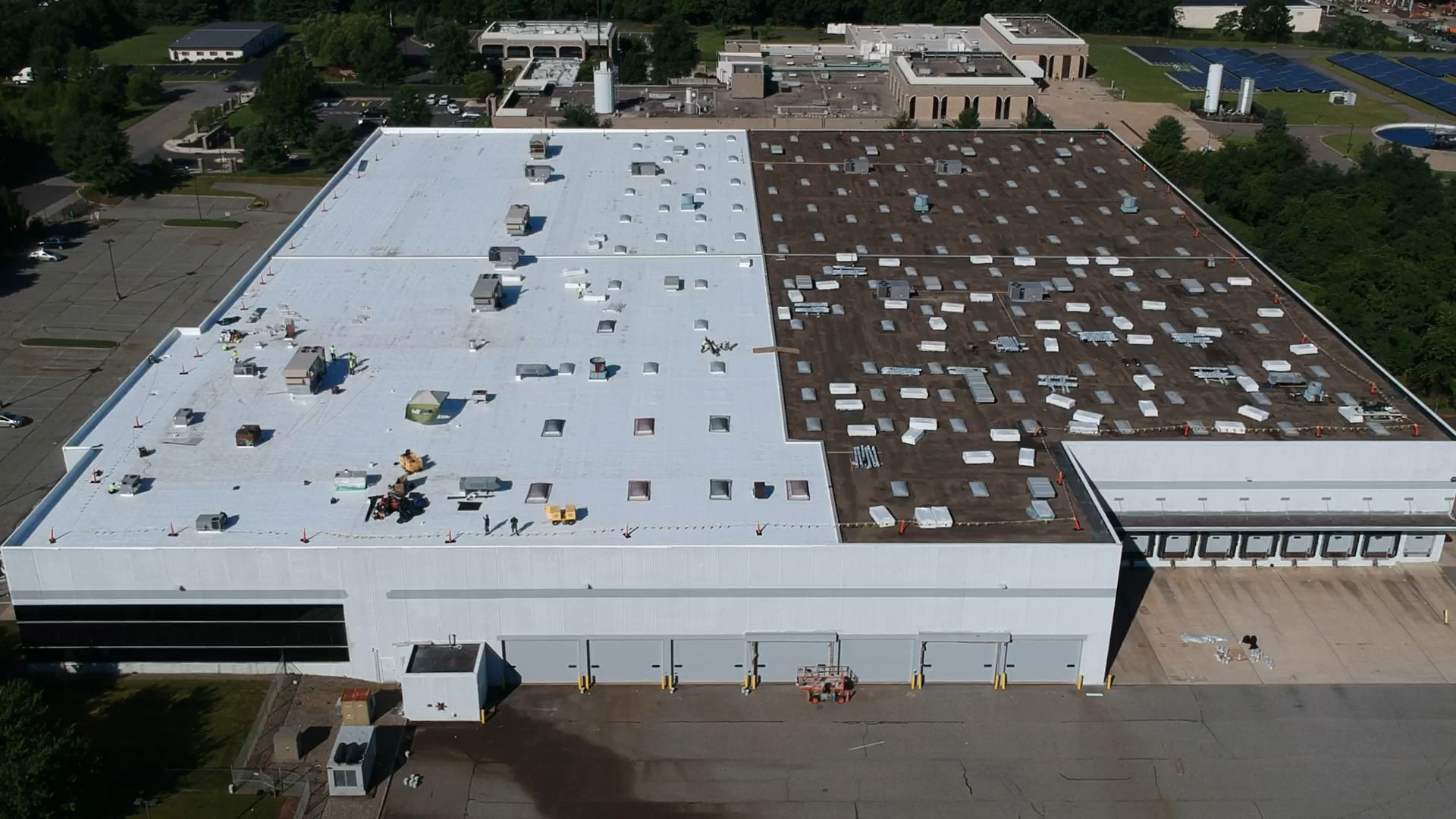

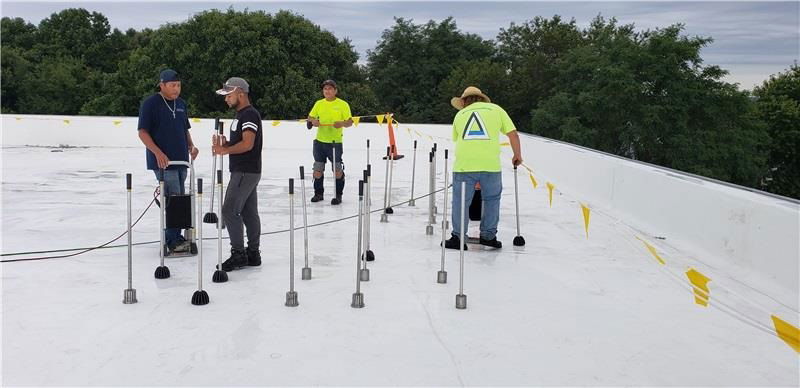

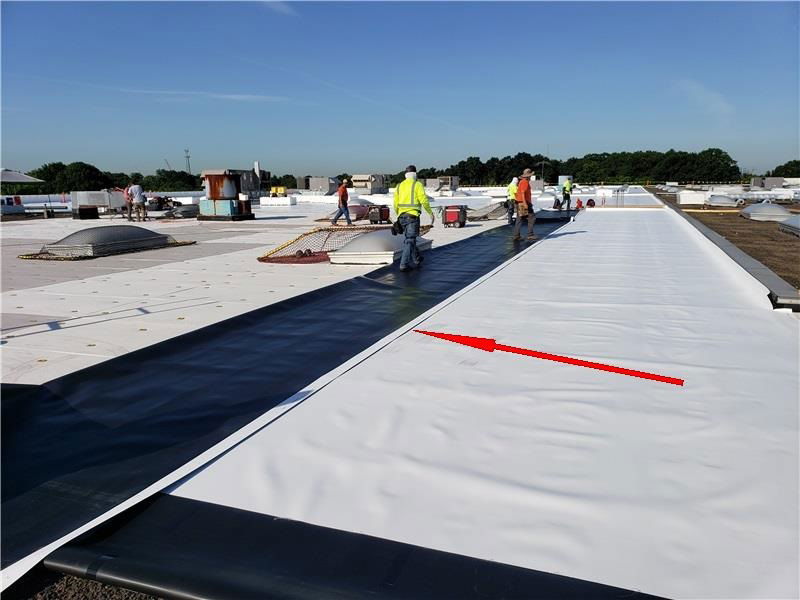

Thermoplastic single ply Overlay roof system.
Induction weld 60 mil TPO membrane system. 1/2" HD coverboard, induction weld plates and fasteners installed in a 2' x 3' grid pattern. 20-year manufacturer's system warranty.

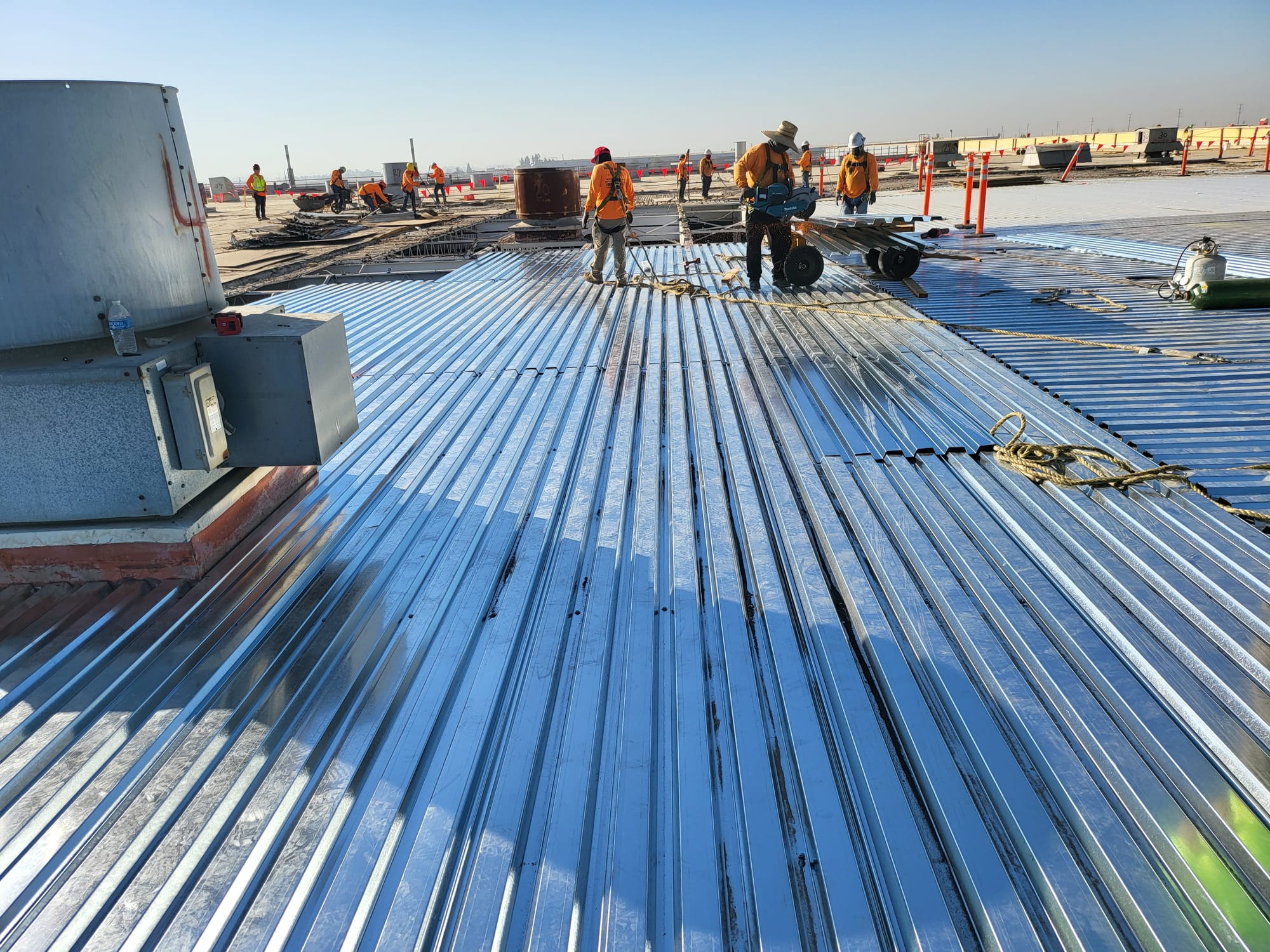

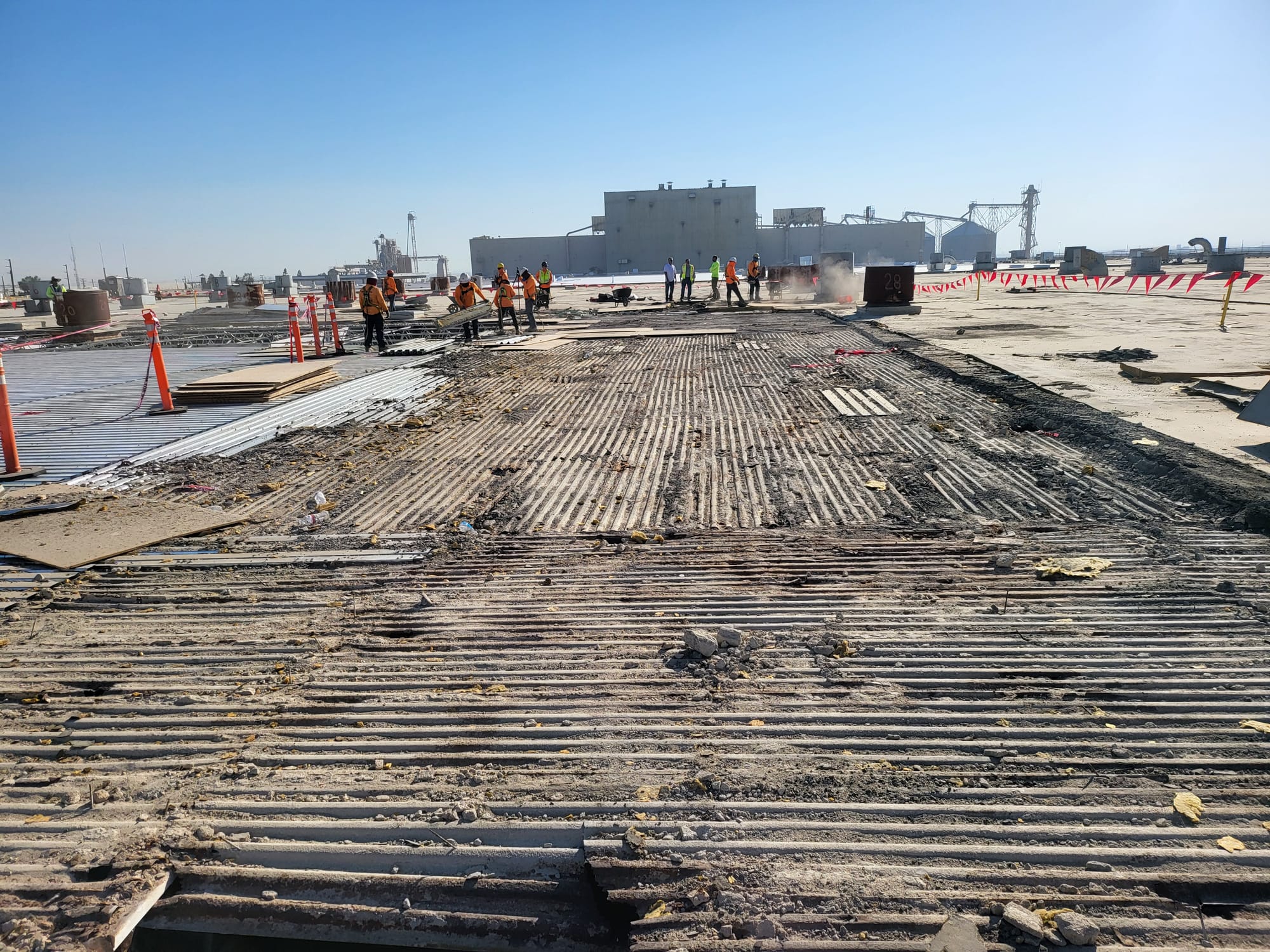

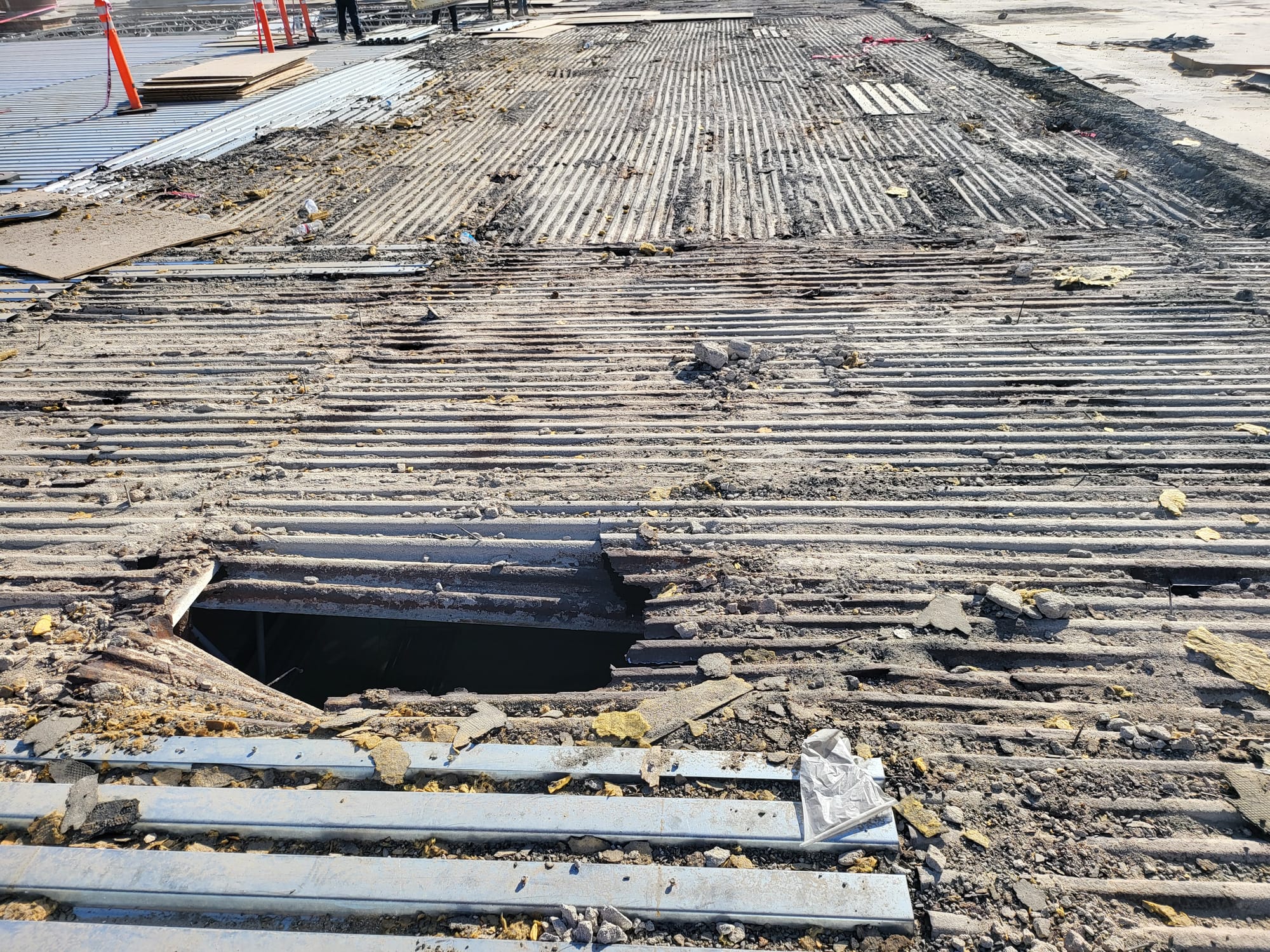

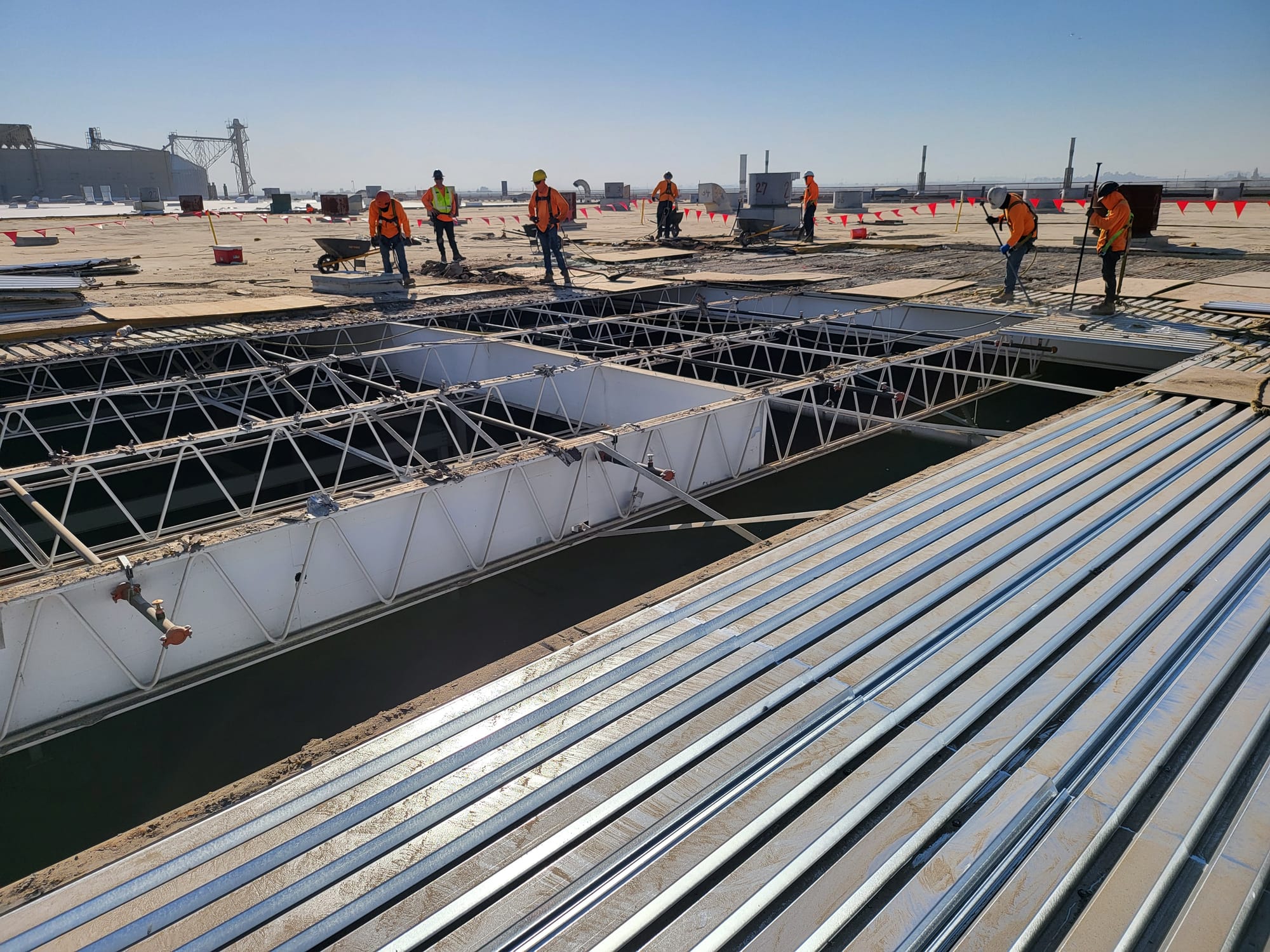

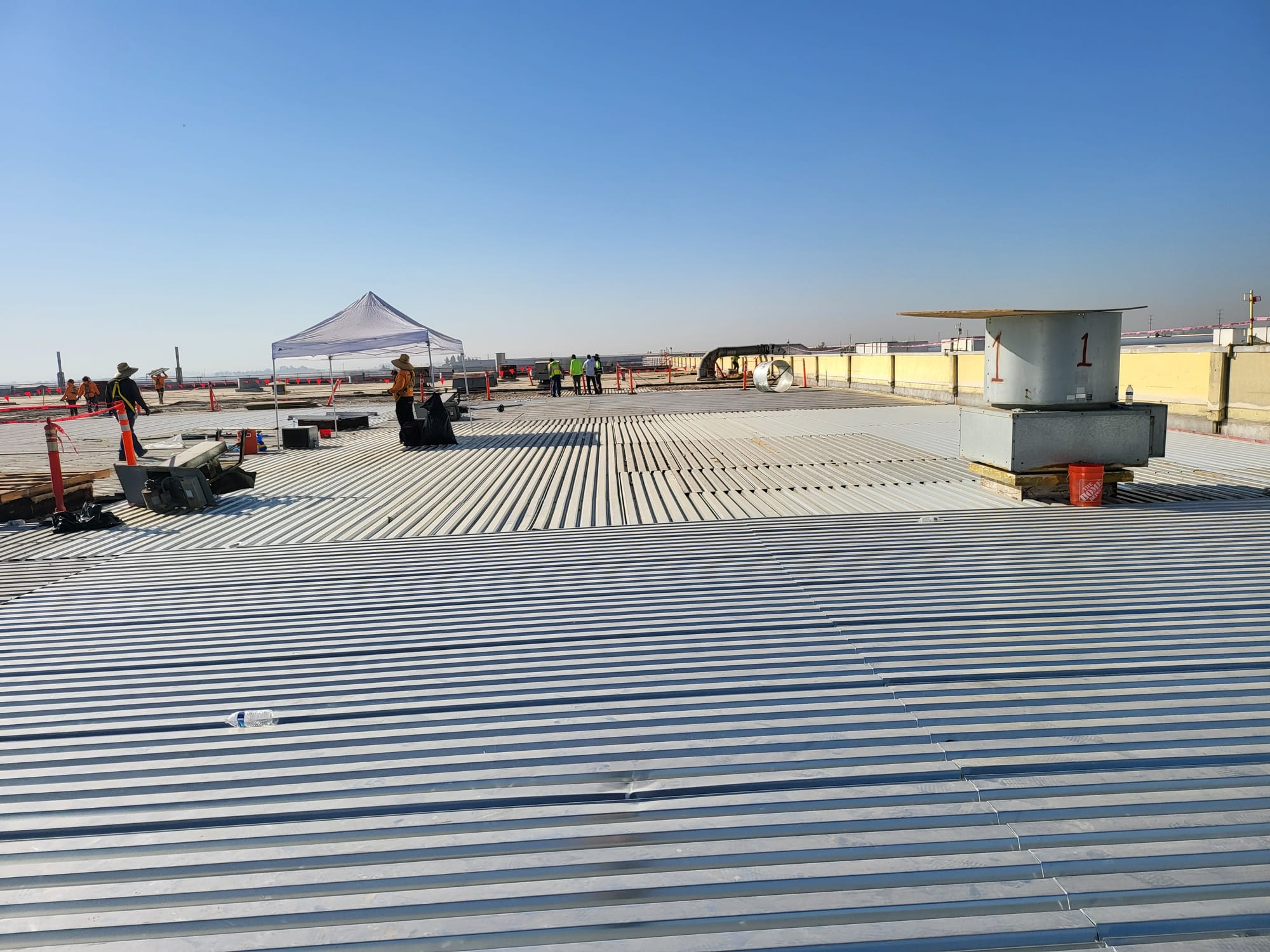

Deck Replacement
Remove the deteriorated LWC deck: Safely dismantle the existing lightweight concrete deck, ensuring all debris is cleared to expose the underlying structure. Inspect the supporting structure: Confirm the integrity of the steel framing and joists. Any signs of corrosion or structural issues should be addressed before proceeding. Install galvanized steel decking (20 gauge): Secure the decking in accordance with FM Global standards, ensuring proper fastening methods such as welds, screws, or mechanical attachments as required. Confirm compliance with FM 1-75. Verify wind uplift resistance and fastening patterns to align with FM specifications, ensuring durability against environmental stressors.

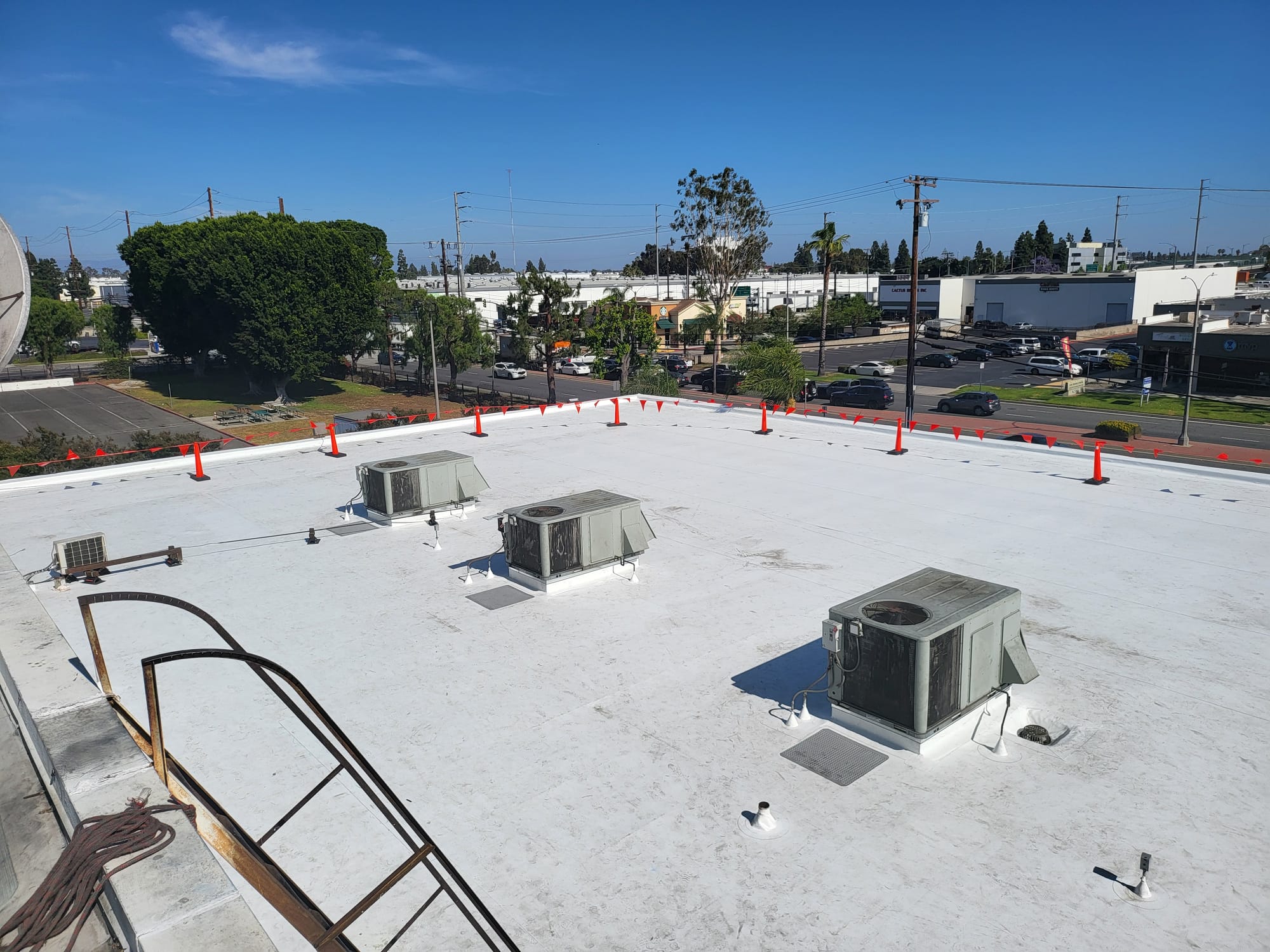

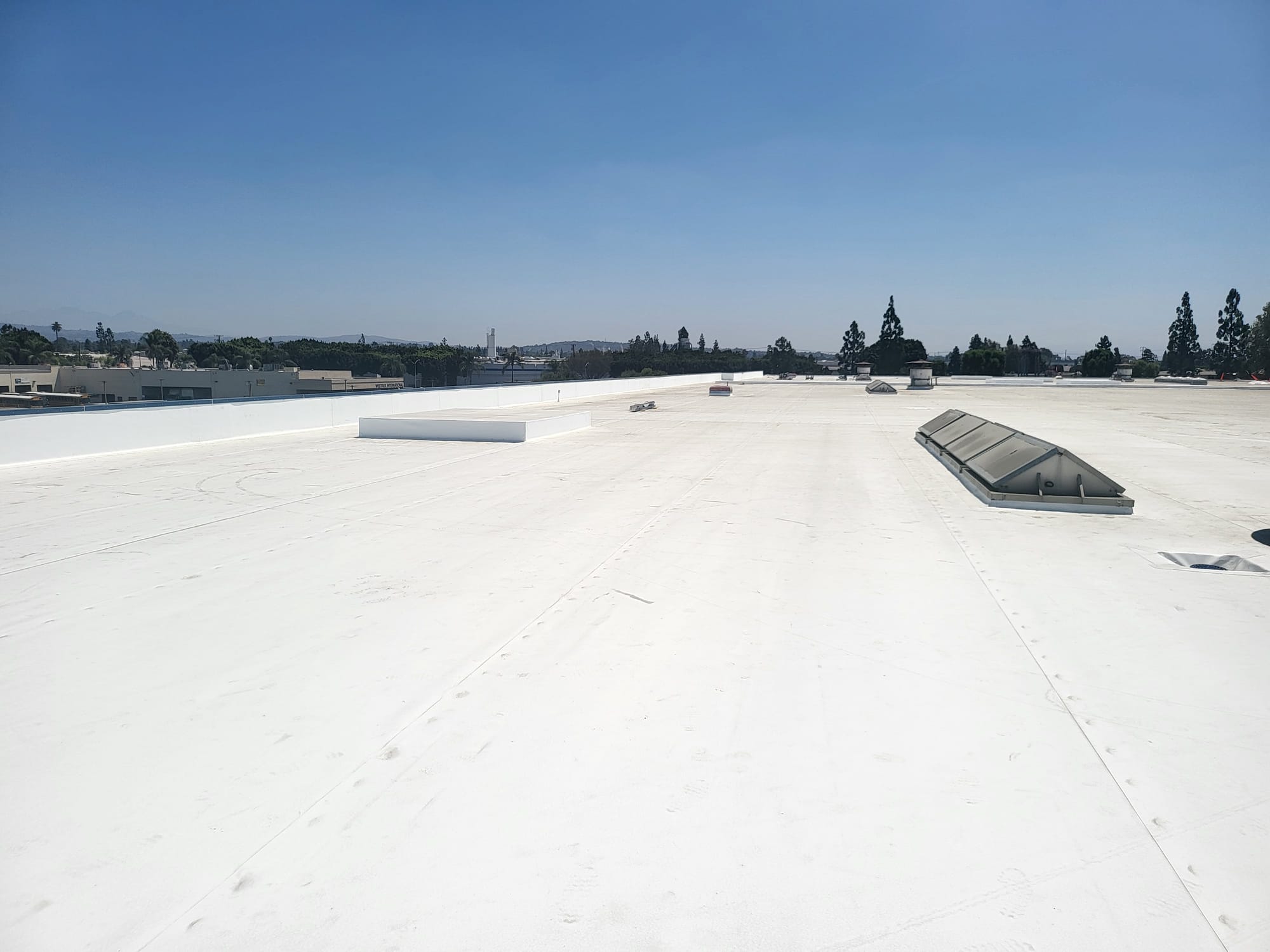

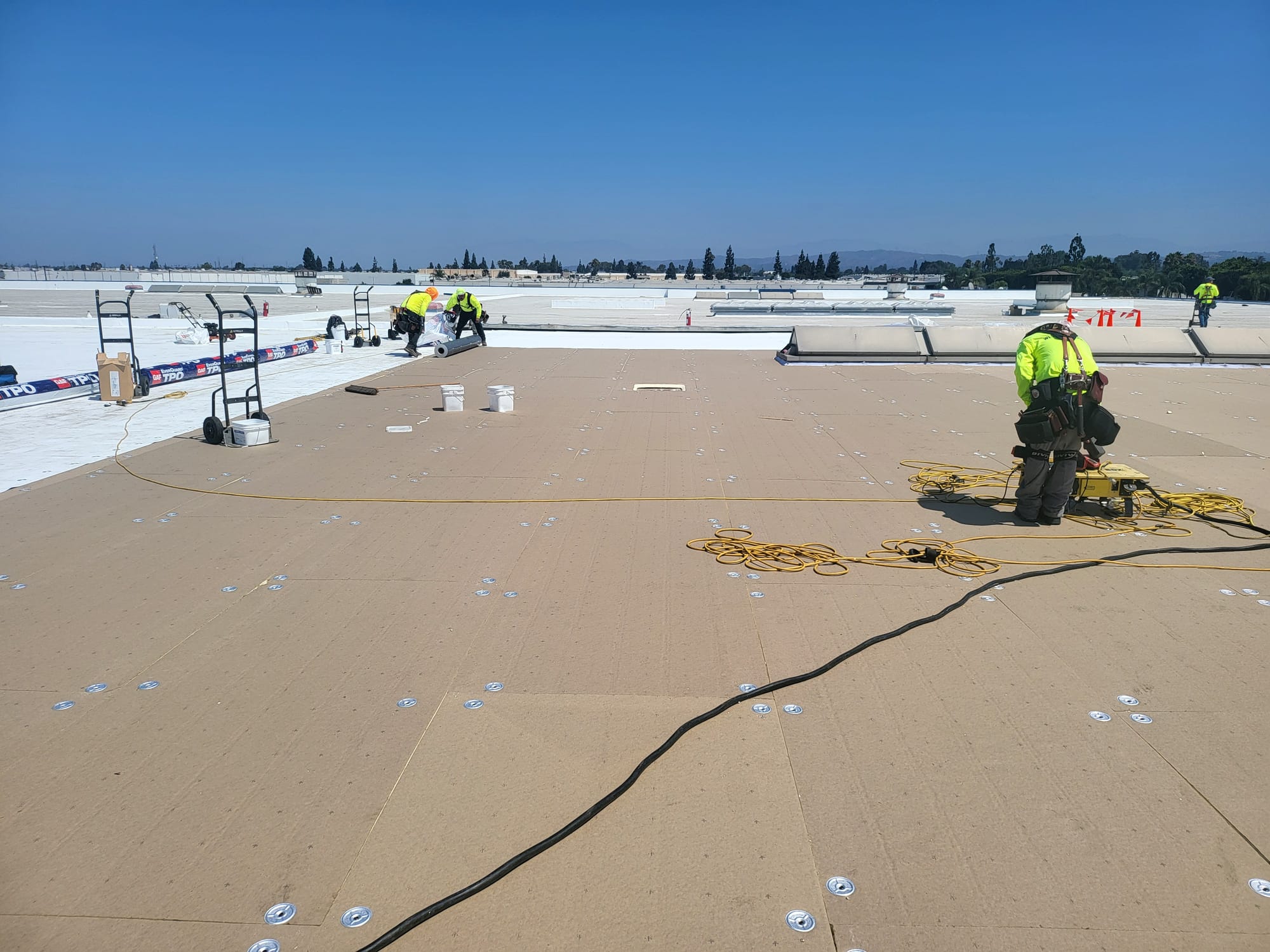

Distribution Warehouse

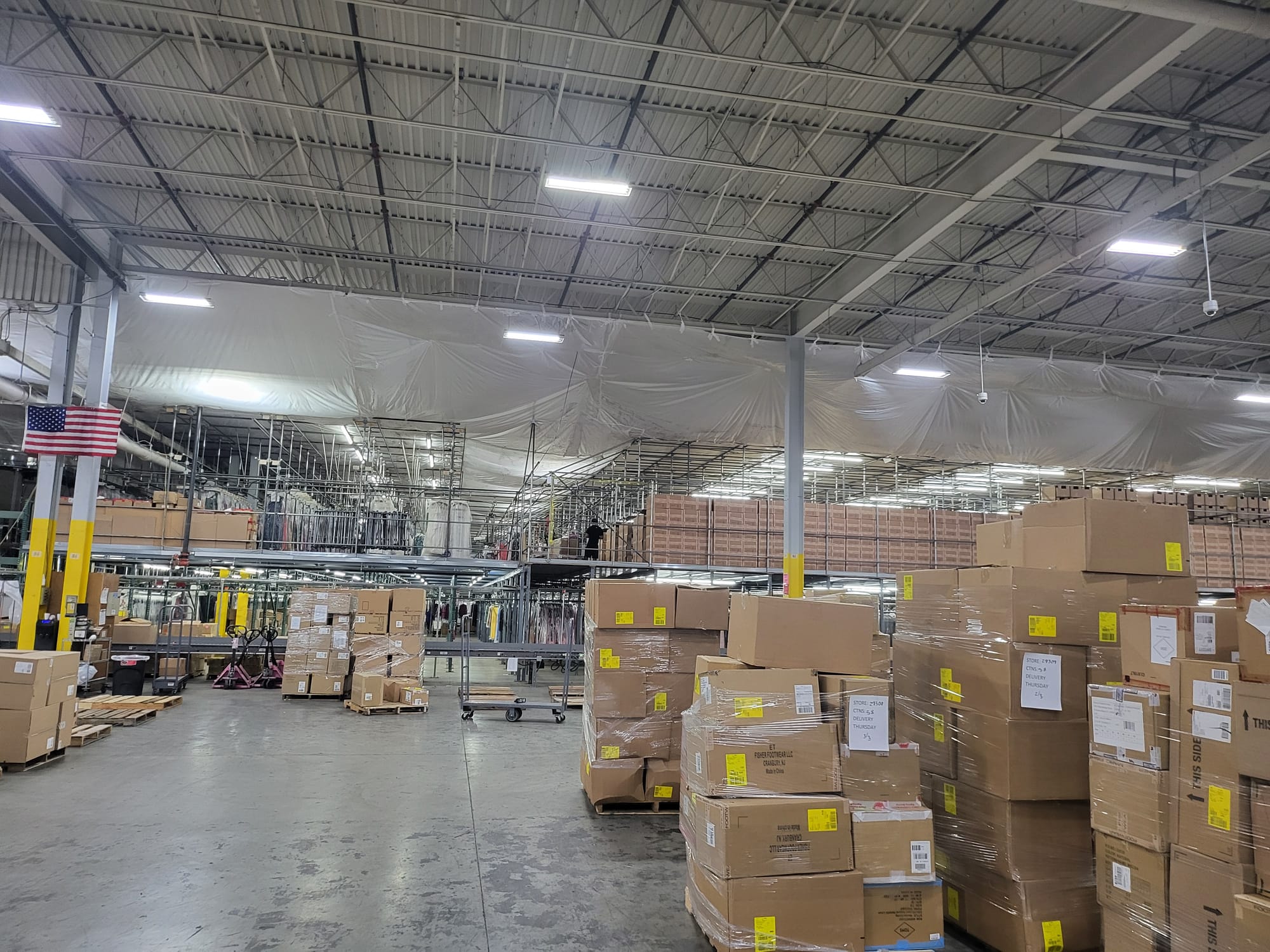

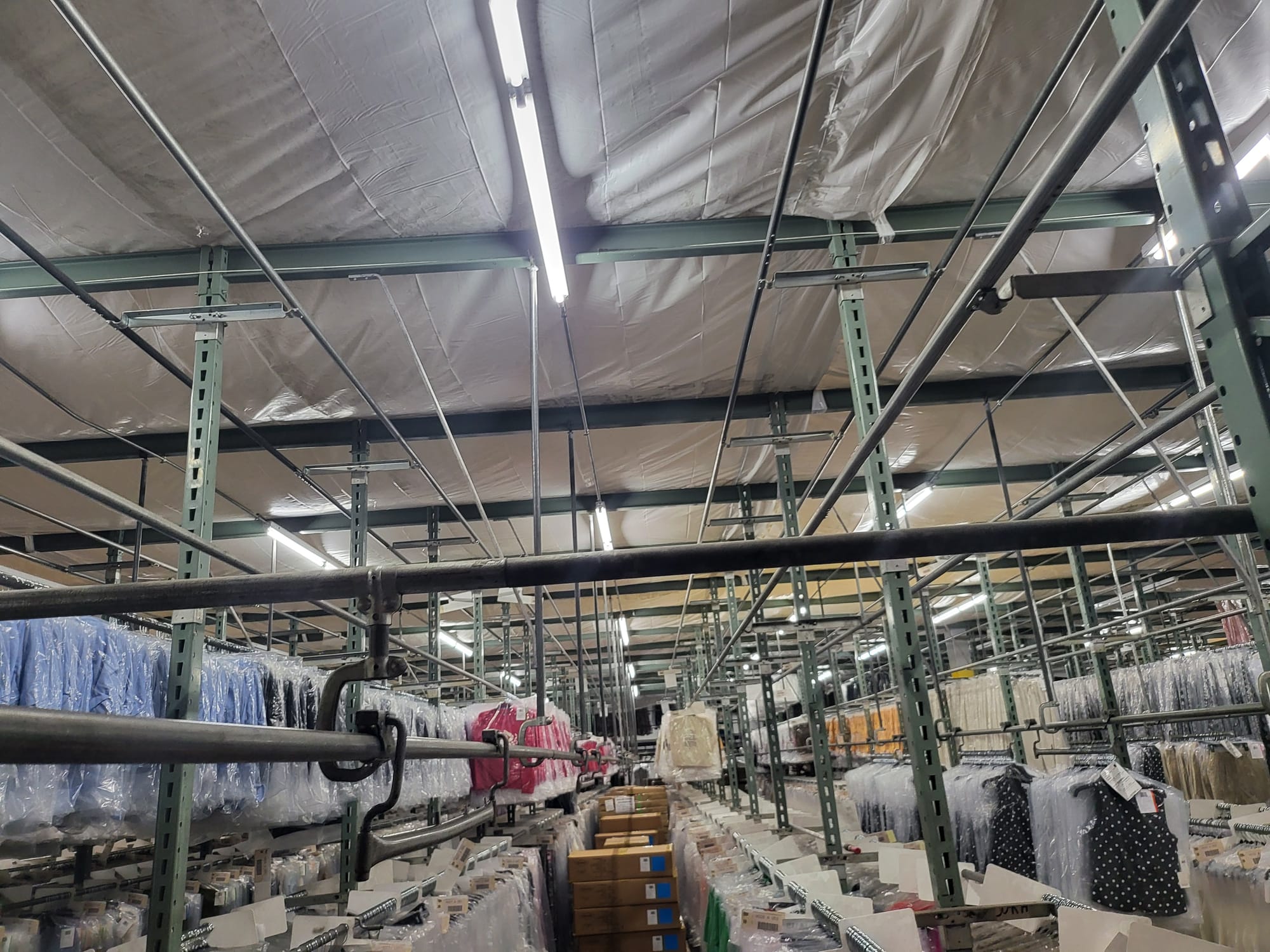

Attached in-seam 60 mil TPO membrane system. Adding 1.8" Polyisocyanurate board insulation to meet local code requirements. 20-year manufacturer's system warranty. Interior dust protecting installed at sensitive areas to help prevent inventory damage.
